Packers/Rollers
The Profile Packer/Roller
GREATER PRODUCTIVITY
- Handy Hitch Grader Mounted Packer/Rollers are tough, durable and highly mobile.
- Conserve moisture during road maintenance in dry spells.
- Seal moisture out of a newly crowned road in a wet spell.
- During new road construction compacting each lift of material to make a solid base.
- When maintaining the road, each lift can be tightly packed to make a safe traveling road surface.
- Move up a gear. The Packer/Roller stabilizes the grader.
- 75″, 90″ and 120″ widths available.
The Most Advanced Grader Mounted Packer/Roller on the Market!
Continuous compaction ensures a smooth, uniform driving surface. The result is a driving surface that stands up to the impact of weather and traffic. Continuous compaction results in fewer trips per maintenance mile per year. You will reduce your grader usage by 25-30% annually – saving you time, fuel and repairs.
The Profile frame has three main pivot points located at the rear of the front frame. Each pivot point is linked via hardened steel pins and bushing to an arm assembly that is controlled by a hydraulic cylinder and central Pressure Relief System for down pressure control. Each of the three link arms is then attached to a walking beam. Each walking beam has two 6000 lb double-ended spindle and hub assemblies, complete with 14-ply smooth roller tires attached to each end. The Frame design enables you to follow the contour of the road by diverting oil from one hydraulic cylinder to another via the hydraulic pressure relief system.
The Profile is attached directly to the rear of the grader, the lift assembly frame comes with a standard 24-inch offset. Available options are a quick attach plate and front steering pivot plate.
| PROFILE PACKER/ROLLER SPECIFICATIONS: | 75″ | 90″ | 120″ |
| Overall Frame Width | 96″ | 96″ | 128″ |
| Packing Width | 75″ | 90″ | 120″ |
| Overall Length | 95″ | 95″ | 95″ |
| Overall Height | 44″ | 44″ | 44″ |
| Weight (Approx.) | 3500 lbs | 3900 lbs | 5200 lbs |
- 6000 lbs hub & spindles
- 14 ply smooth roller tires c/w heavy duty rim
- 10″ 3000psi hydraulic cylinders
- Standard Accumulator System

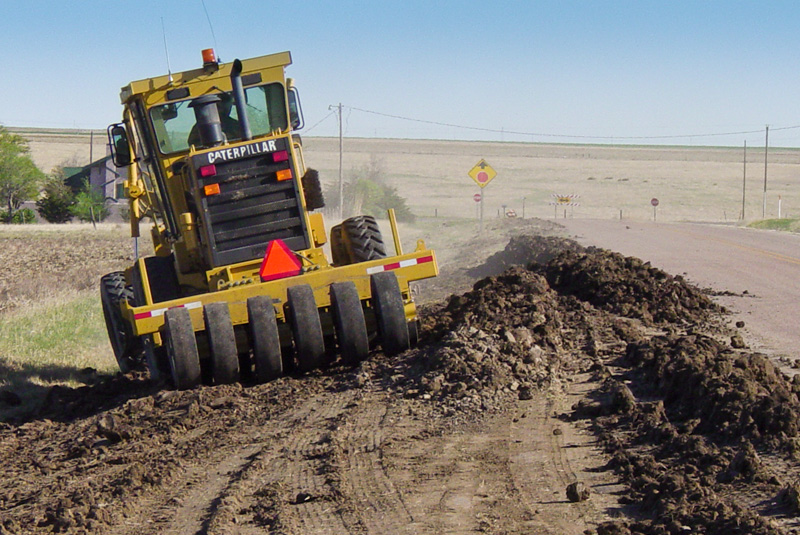

The Contour Packer/Roller
- Comes standard with accumulator and pressure relief valve
- Handy Hitch Grader Mounted Packer/Rollers are tough, durable and highly mobile.
- 75″, 90″, 105″ and 135″ widths available.
Follow the road with ease …
Simple to use by a single operator, the Contour Packer/Roller has a unique independent contour frame system that allows the compactor tires to follow the exact contour of the road. This system maintains constant pressure by the tires on the road and leaves a smooth, uniform surface. In addition, the Contour machines mount easily to any brand of grader ripper bar. The Handy Hitch Contour Packer/Roller is so easy to use that owners will quickly achieve significant savings!
| CONTOUR PACKER/ROLLER SPECIFICATIONS: | 90″ | 104″ | 120″ |
| Overall Frame Width | 115″ | 115″ | 139″ |
| Packing Width | 90″ | 104″ | 120″ |
| Overall Length | 79″ | 79″ | 79″ |
| Overall Height | 35″ | 35″ | 35″ |
| Weight (Approx.) | 4000 lbs | 4300 lbs | 4800 lbs |
- 6000 lbs hub & spindles
- 14 ply smooth roller tires c/w heavy duty rim
- 10″ 3000psi hydraulic cylinders
- Standard Accumulator System

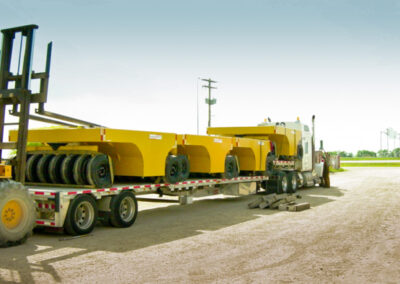

Ballast Packer/Roller
- 6000 lbs hub & spindles
- 14 ply smooth roller tires c/w heavy duty rim

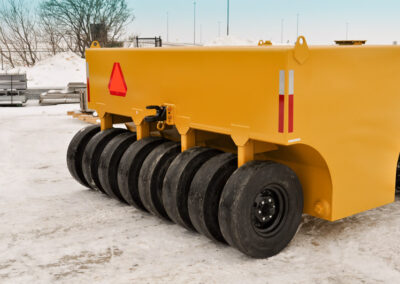

Top-of-the-line Ballast Packer/Roller in 12 and 16 Wheel Designs

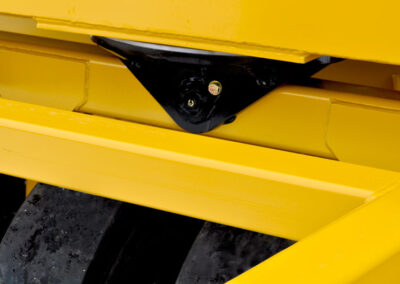

The Handy Hitch 12 & 16 Tire Ballast Packer/Roller has been designed to be the industry leader in box & Frame design. Features a heavy duty main pivot point, complete with replaceable front beam pin and heavy duty front frame construction with replaceable main pivot pins for easy access and servicing.
- Easy access 6000 lb double-ended spindles and 14-ply roller tires.
- Heavy duty front hitch and replaceable clevis.

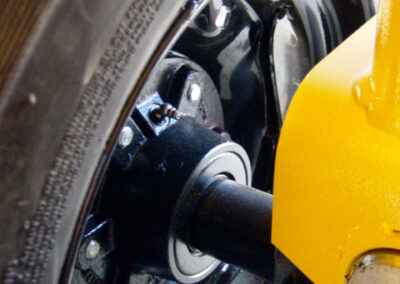

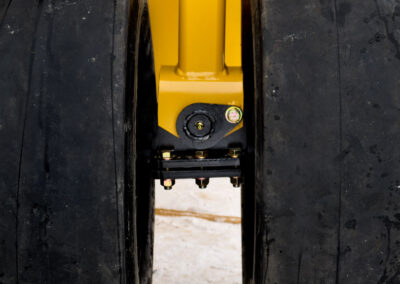

- 6-bolt easy access spindle clamp for quick tire change and rim replacement.

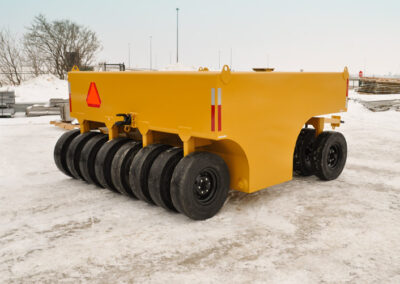

- Water Ballast Packer/Roller also available in 12 and 16 tire options.
| GRAVEL/WATER BALLAST PACKER/ROLLER SPECIFICATIONS: | 12 Tire Gravel | 12 Tire Water | 16 Tire Gravel |
| Overall Frame Width | 92″ | 92″ | 123″ |
| Packing Width | 90″ | 90″ | 123″ |
| Overall Length | 134″ | 134″ | 134″ |
| Overall Height | 51″ | 63″ | 51″ |
| Weight Empty (Approx.) | 5,877 lbs | 7,396 lbs | 7,836lbs |
| Weight Full (Approx.) | 16,099 lbs | 16,510 lbs | 20,580 lbs |
Single Drum Packers/Rollers

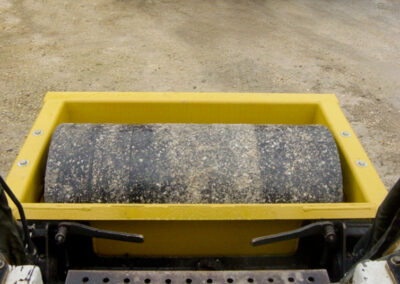

Skid Steer Packer/Roller:
- Excellent for those tight spots that require packing but have limited access.
- Great for landscaping, construction sites, parks and recreation areas.
- Quickly attaches to the front of a skid steer.
- Perfect for jobs where a full size compactor is not cost-efficient.

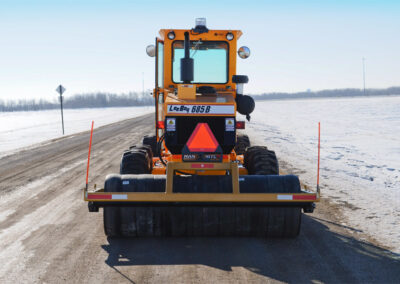

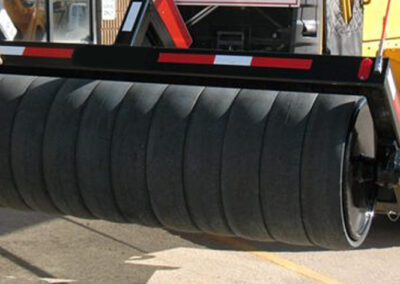

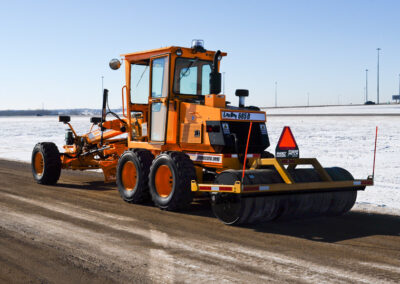

Handy Packer, Steel Drum & Rubber Tire Roller:
- Versatile! Grader mount, front-end loader mount and tractor 3-point hitch mount.
- Economical and virtually maintenance free.
- Heavy duty spherical bearings will ensure smooth operation.
- No pneumatic tires means no more flats.
- Various widths available.

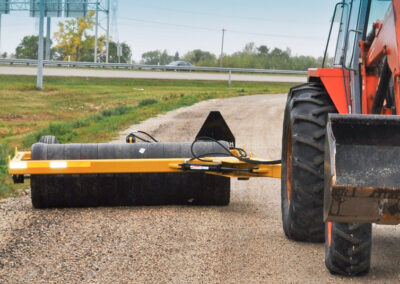

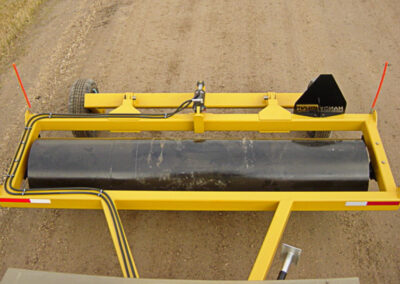

Inline Packer/Roller:
- Tractor draw bar hitch mount.
- Economical and virtually maintenance free.
- Heavy duty spherical bearings will ensure smooth operation.
- No pneumatic tires means no more flats.
- Available in 75″, 90″ and 120″ options.

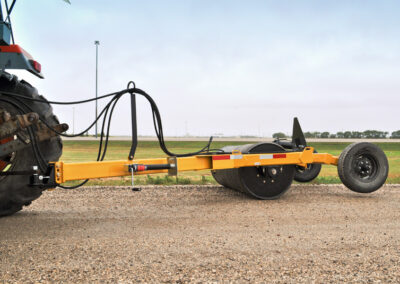

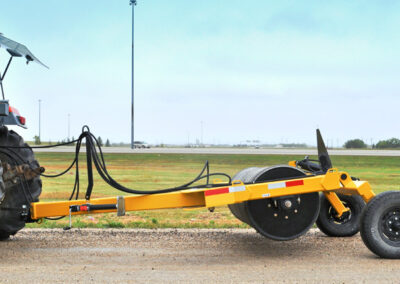

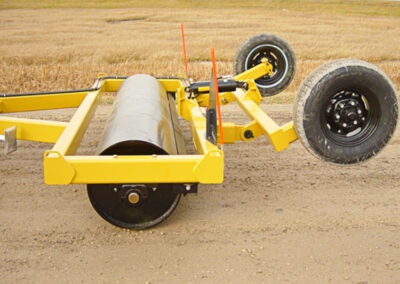

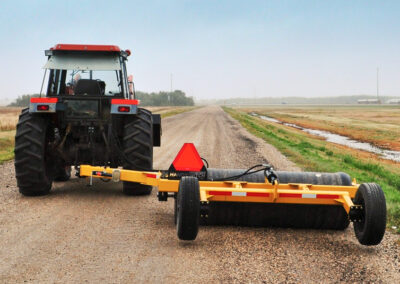

Offset Packer/Roller:
- Ideal for rolling steep ditch banks and soft road shoulders.

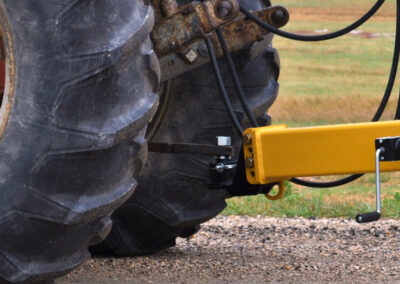

- Tractor draw bar hitch mount.
- Economical and virtually maintenance free.
- Heavy duty spherical bearings will ensure smooth operation.
- Available in 75″, 90″ and 120″ options.
